AR-600 (E) Dual Function Powerful Type Ultrasonic Lapping Machine
AR-600 (E) Dual Function Powerful Type
FEATURE
AR-600(E) is the upgrade model of AR-208 and AR-303. All new design with high-efficiency microprocessor that gives the machine with more steady and effective performance.
- This dual-function machine provides you the versatility of both Ultrasonic and mechanical polishing.
- Max. 40 watts output that satisfy various of polishing works.
- Max. 45 watts Ultrasonic output makes polishing job more effective.
- Brush DC motor output is 5~30 volt and output power is 60 watts.
| Power Controller | |
|---|---|
| Main supply | AC-90V ~ 250V, 50/60 Hz |
| Ultrasonic output | 45 watts |
| Vibration frequency | 18 ~ 26 kHz |
| Stroke amplitude | 3 ~ 40 μm |
| Frequency adjustment | auto-tracing |
| Power consumption | 80 watts |
| Fuse | 2A time-lag type |
| Output of DC motor | 5 ~ 30V |
| Power of DC brush | Max. 60 watts |
| Power of DC brushless | None |
| Dimensions | 170 x 260 x 140mm |
| Weight | 2.0 kg |
| Handpiece | |
|---|---|
| Ultrasonic handpiece | GS-H09 |
| Dimensions | Ø33 x 146mm |
| Weight | 254 g |
| Rotary handpiece | |
|---|---|
| Brush handpiece | ◎ U-Lap 35, 50 |
Note : ◎ Optional accessory (U Lap 35, 50)
Applications
|
|
|
|
|---|---|---|---|
| Mold & Die Polish |
Grinding | Correction of Intricate area |
Correction of PCB patterns |

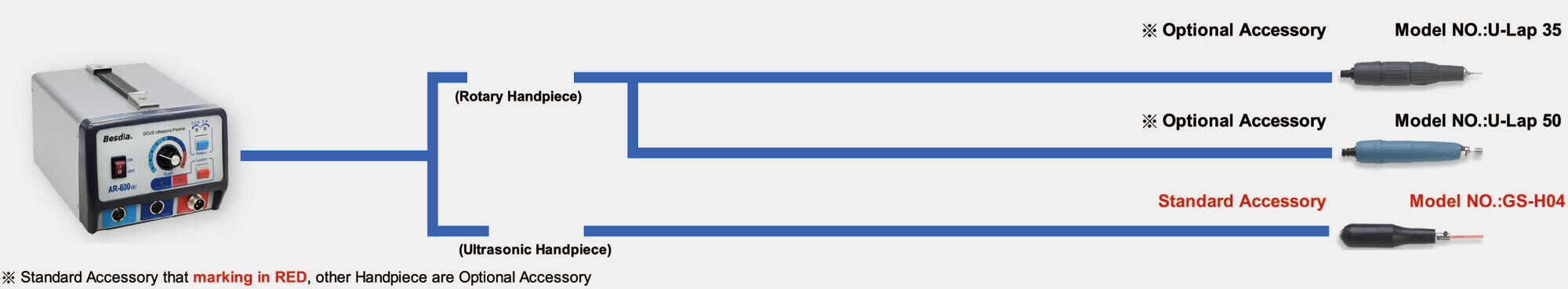

Attachment Handpiece for AR-600(E)
AR-600(E) set include (Standard)
| Ultrasonic Handpiece |
|
(GS-H09) Ø33x146mm |
| Power Cord |
|
18AWG x 3C x 180cm |
| Handpiece Cord |
|
3Cx150cm |
| Wrench (HEX) |
|
HEX (62mm) |
| Handpiece Rest |
|
110x50x35 mm |
| Tool Changing rack |
|
For 12mm Holder |
| Wrench |
|
140mm (10/12) |
| Holder (Ø3.0mm) |
|
For Ø3mm shank Tool (2pcs) |
| Holder (3.0mm) |
|
For oil Stone (3mm) |
| Holder (1.0mm) |
|
For ceramic Fiber Stone (1.0mm) |
| Foot Switch |
|
Cord Length 150cm |
