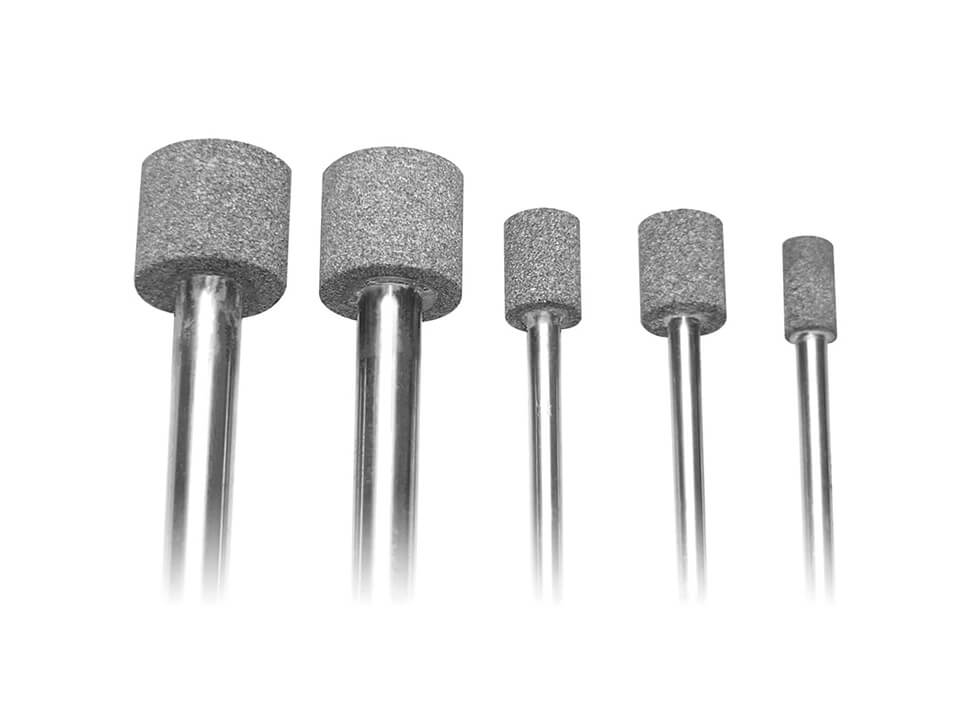

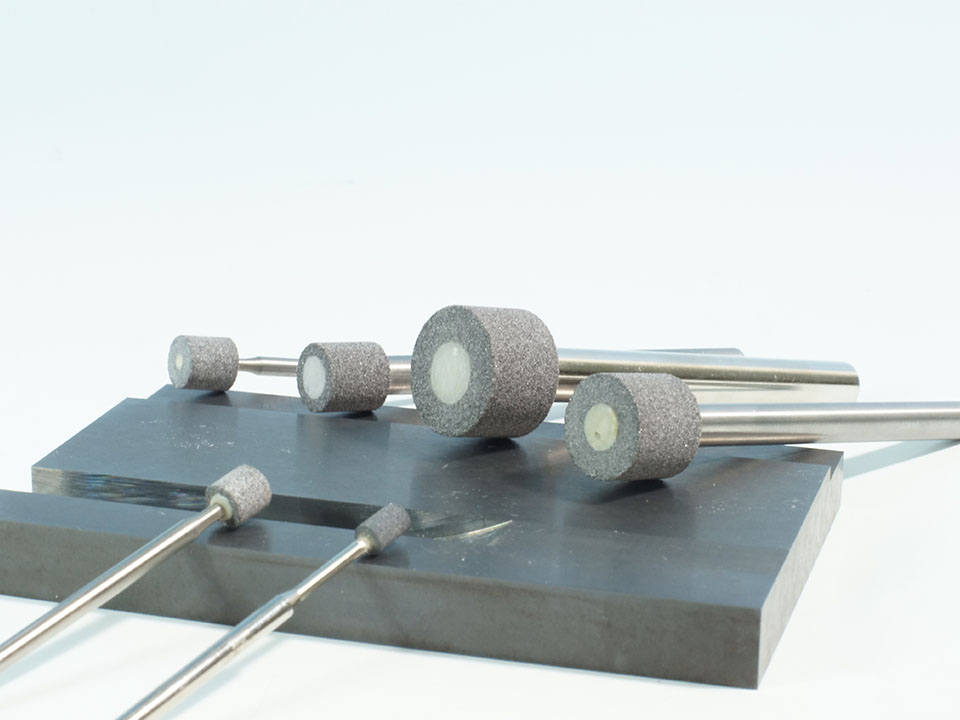

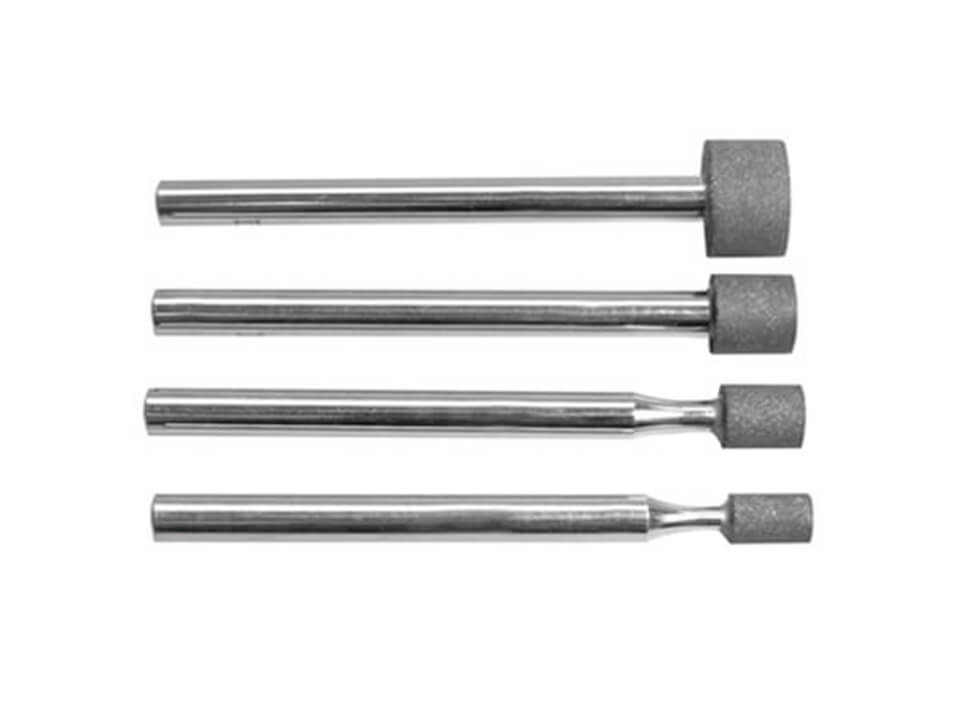

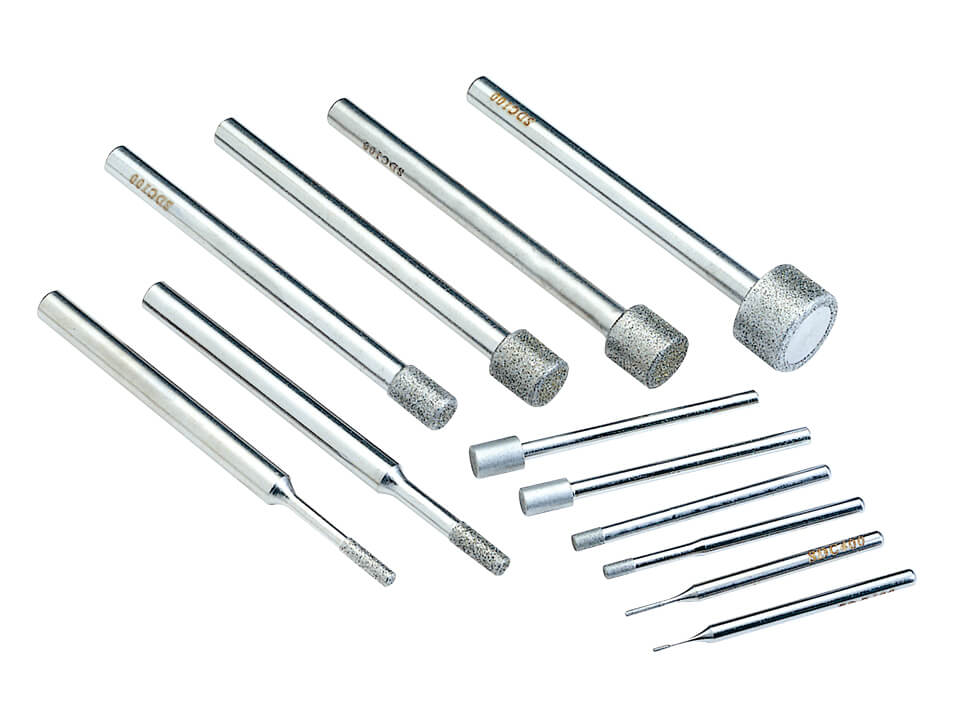

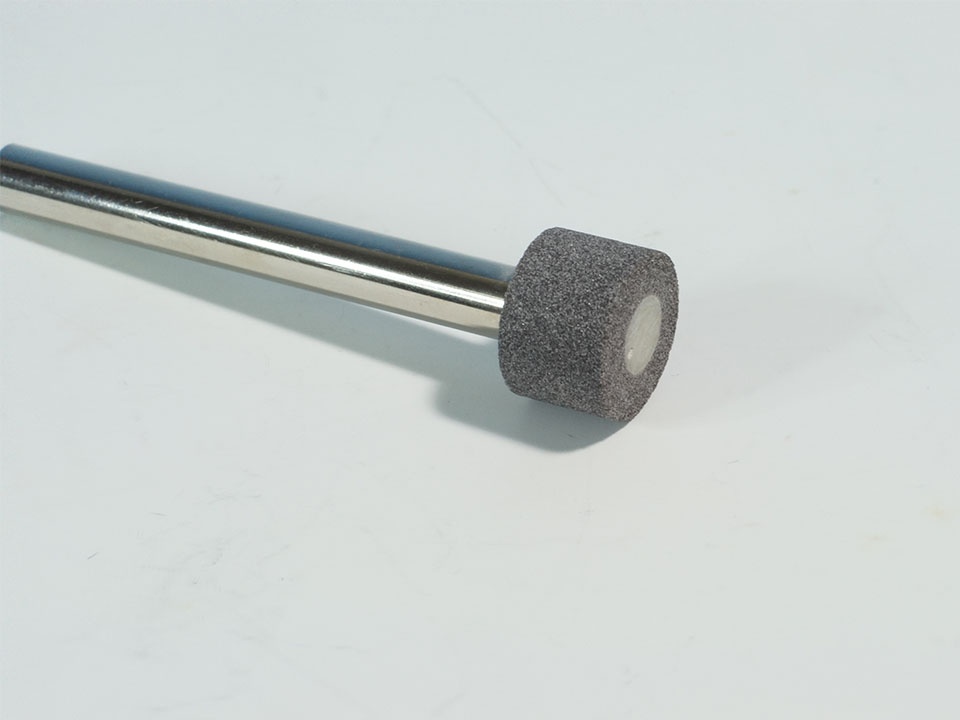

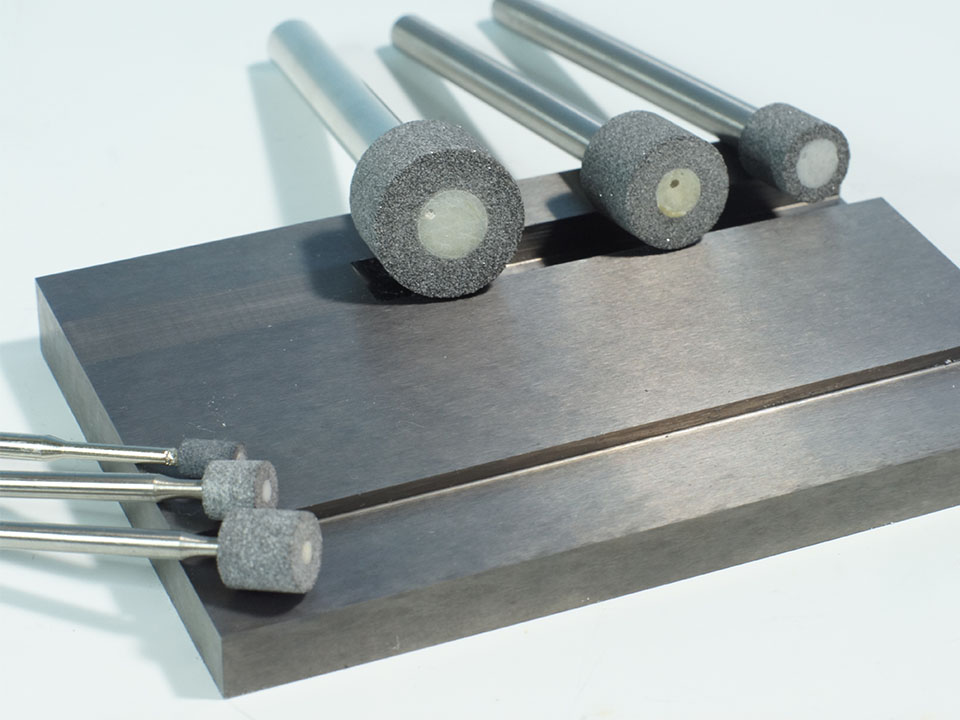

Vitrified CBN Internal Points
Vitrified CBN Internal Points
FEATURE
  • Vitrified CBN internal points are used for internal grinding and jig grinding of high speed steel and hardened alloy steel. (Wet Grinding)
  • Grit size in the above table is standard for that item, others are available upon request.
Specifications
Unit : mm
Order no. Type ØD T X N L ØB Grit size
VIB-3040 A 4.0 6 1.0 12 60 3 #200
VIB-3050 A 5.0 6 1.5 12 60 3 #200
VIB-3060 A 6.0 6 2.0 12 60 3 #200
VIB-3080 A 8.0 8 3.0 12 60 3 #200
VIB-6100 B 10.0 8 2.0 - 80 6 #200
VIB-6120 B 12.0 10 3.0 - 80 6 #200
VIB-8140 B 14.0 12 3.0 - 80 8 #200
VIB-6140 B 14.0 12 4.0 - 80 6 #200
VIB-8160 B 16.0 12 4.0 - 80 8 #200
VIB-6160 B 16.0 12 5.0 - 80 6 #200
VIB-8180 B 18.0 12 5.0 - 80 8 #200
VIB-6180 B 18.0 12 6.0 - 80 6 #200
