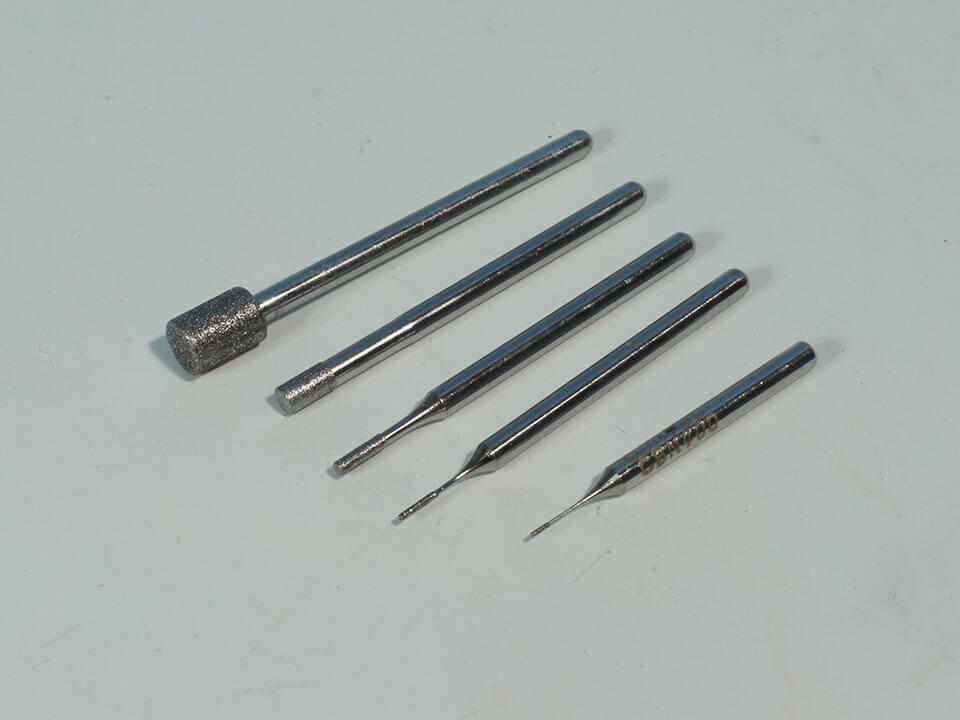

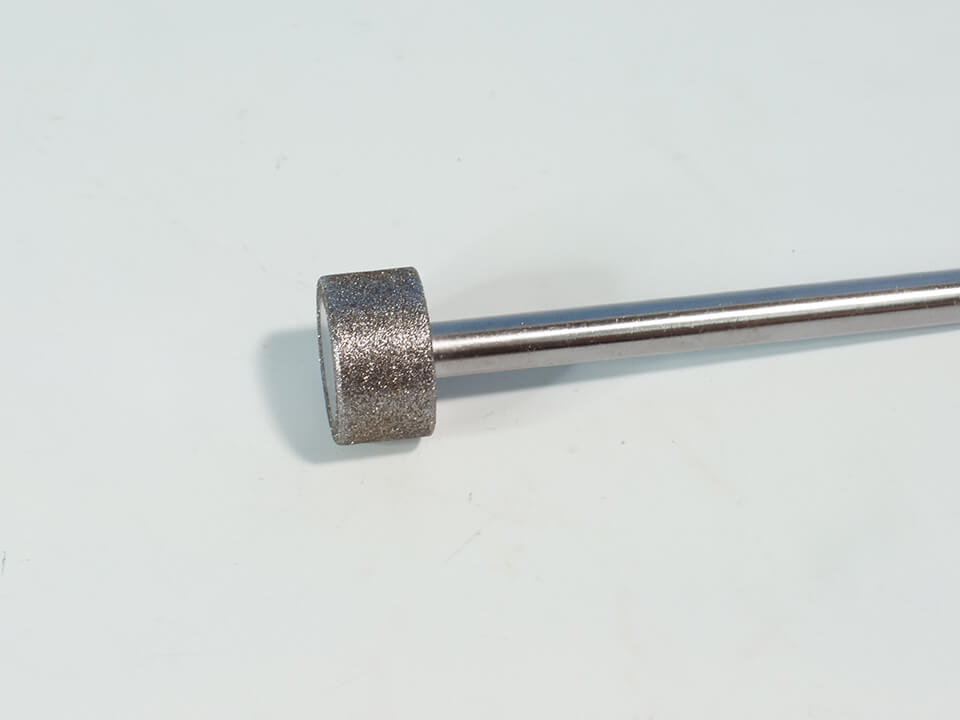

Diamond & CBN Internal Points
FEATURE
- Diamond internal points are used for jig, internal grinding, and precision grinding of small holes in carbide, ceramics, sapphire, glass etc.
- CBN internal points are used similarly on tough, high carbon, high chrome harden steels.
- Grit size in the above table is standard for that item, others are available upon request.
Unit : mm
Order no. | Type | ØD | T | N | L | ØB | Grit size | |
---|---|---|---|---|---|---|---|---|
Diamond | CBN | |||||||
ID-3003 | IB-3003 | A | 0.3 | 2 | 4 | 35 | 3.0 | #600 |
ID-3004 | IB-3004 | A | 0.4 | 2 | 5 | 35 | 3.0 | #400 |
ID-3005 | IB-3005 | A | 0.5 | 2 | 5 | 35 | 3.0 | #400 |
ID-3006 | IB-3006 | A | 0.6 | 3 | 5 | 40 | 3.0 | #200 |
ID-3007 | IB-3007 | A | 0.7 | 3 | 8 | 40 | 3.0 | #200 |
ID-3008 | IB-3008 | A | 0.8 | 3 | 8 | 40 | 3.0 | #200 |
ID-3009 | IB-3009 | A | 0.9 | 4 | 8 | 40 | 3.0 | #200 |
ID-3010 | IB-3010 | A | 1.0 | 5 | 8 | 40 | 3.0 | #200 |
ID-3015 | IB-3015 | A | 1.5 | 5 | 8 | 45 | 3.0 | #150 |
ID-3020 | IB-3020 | A | 2.0 | 5 | 12 | 45 | 3.0 | #150 |
ID-3025 | IB-3025 | A | 2.5 | 5 | 15 | 45 | 3.0 | #150 |
ID-3030 | IB-3030 | A | 3.0 | 5 | 15 | 45 | 3.0 | #150 |
ID-3040 | IB-3040 | B | 4.0 | 5 | - | 50 | 3.0 | #150 |
ID-3050 | IB-3050 | B | 5.0 | 8 | - | 50 | 3.0 | #150 |
ID-3060 | IB-3060 | B | 6.0 | 8 | - | 50 | 3.0 | #150 |
ID-6040 | IB-6040 | A | 4.0 | 10 | 22 | 80 | 6.0 | #100 |
ID-6050 | IB-6050 | A | 5.0 | 10 | 22 | 80 | 6.0 | #100 |
ID-6060 | IB-6060 | A | 6.0 | 10 | 22 | 80 | 6.0 | #100 |
ID-6070 | IB-6070 | B | 7.0 | 10 | - | 80 | 6.0 | #100 |
ID-6080 | IB-6080 | B | 8.0 | 10 | - | 80 | 6.0 | #100 |
ID-6090 | IB-6090 | B | 9.0 | 10 | - | 80 | 6.0 | #100 |
ID-6100 | IB-6100 | B | 10 | 10 | - | 80 | 6.0 | #100 |
ID-6120 | IB-6120 | B | 12 | 10 | - | 80 | 6.0 | #100 |
ID-6140 | IB-6140 | B | 14 | 10 | - | 80 | 6.0 | #100 |
ID-6160 | IB-6160 | B | 16 | 10 | - | 80 | 6.0 | #100 |
ID-6180 | IB-6180 | B | 18 | 10 | - | 80 | 6.0 | #100 |
