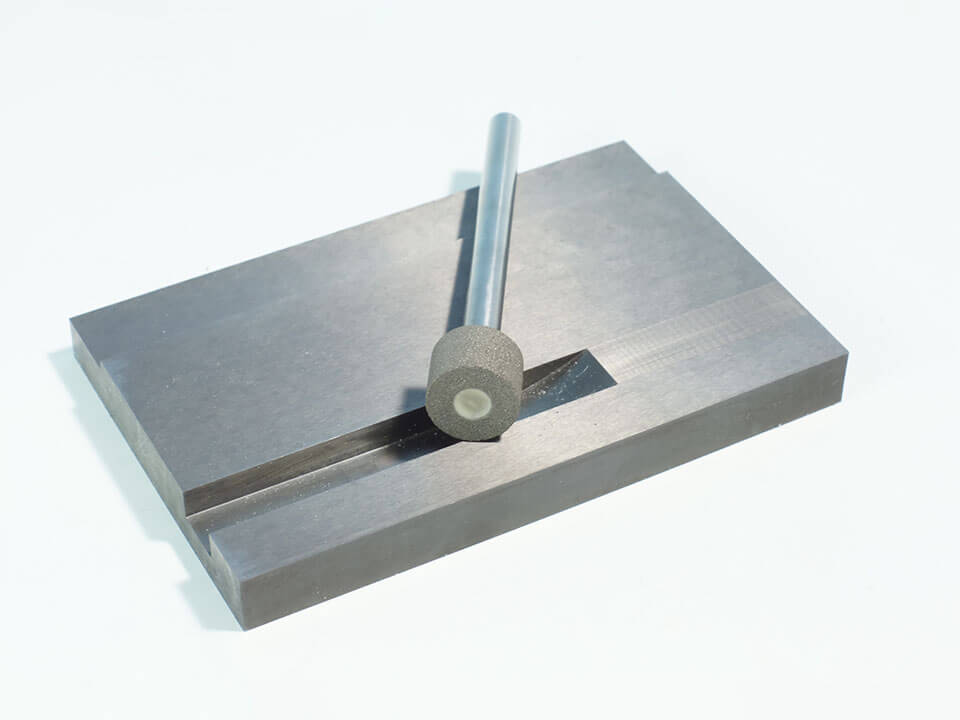

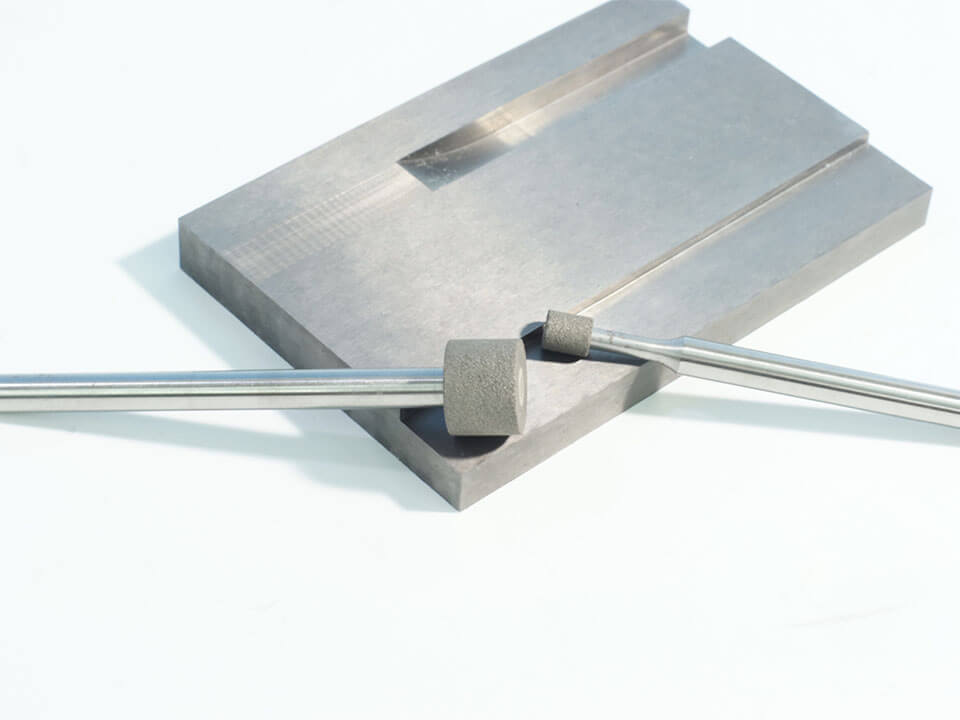

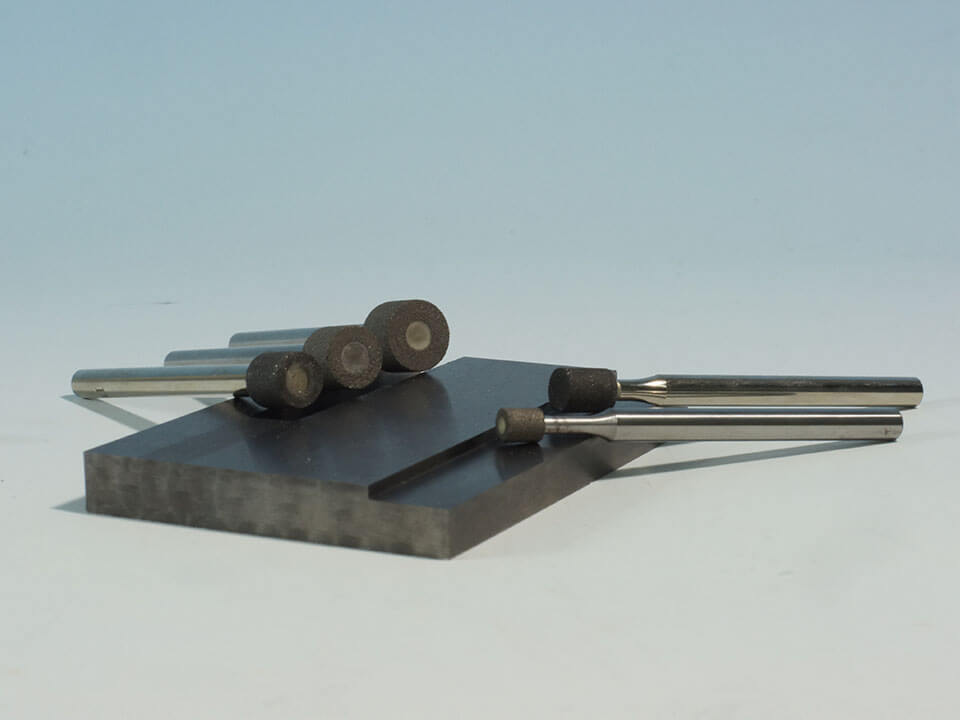

Resinoid CBN Internal Points
Resinoid CBN Internal Points
FEATURE
- Resinoid CBN internal points are used for internal grinding and jig grinding of high speed steel and hardened alloy steel.
- Grit size in the above table is standard for that item, others are available upon request.
Specifications
Unit : mm
| Order no. | Type | ØD | T | X | N | L | ØB | Grit size |
|---|---|---|---|---|---|---|---|---|
| RIB-3040 | A | 4.0 | 5 | 1.0 | 12 | 45 | 3 | #200 |
| RIB-3045 | A | 4.5 | 6 | 1.25 | 12 | 45 | 3 | #200 |
| RIB-3050 | A | 5.0 | 6 | 1.5 | 12 | 45 | 3 | #200 |
| RIB-6060 | A | 6.0 | 6 | 2.0 | 15 | 80 | 6 | #150 |
| RIB-6070 | A | 7.0 | 8 | 2.5 | 15 | 80 | 6 | #150 |
| RIB-6080 | A | 8.0 | 8 | 3.0 | 20 | 80 | 6 | #150 |
| RIB-6100 | A | 10.0 | 10 | 2.0 | 20 | 80 | 6 | #150 |
| RIB-6120 | B | 12.0 | 10 | 3.0 | - | 80 | 6 | #150 |
| RIB-6140 | B | 14.0 | 10 | 4.0 | - | 80 | 6 | #150 |
| RIB-6160 | B | 16.0 | 10 | 4.0 | - | 80 | 6 | #150 |
| RIB-6180 | B | 18.0 | 10 | 5.0 | - | 80 | 6 | #150 |
| RIB-6200 | B | 20.0 | 10 | 6.0 | - | 80 | 6 | #150 |
