Single Point Diamond Dressers
Single Point Diamond Dressers
FEATURE

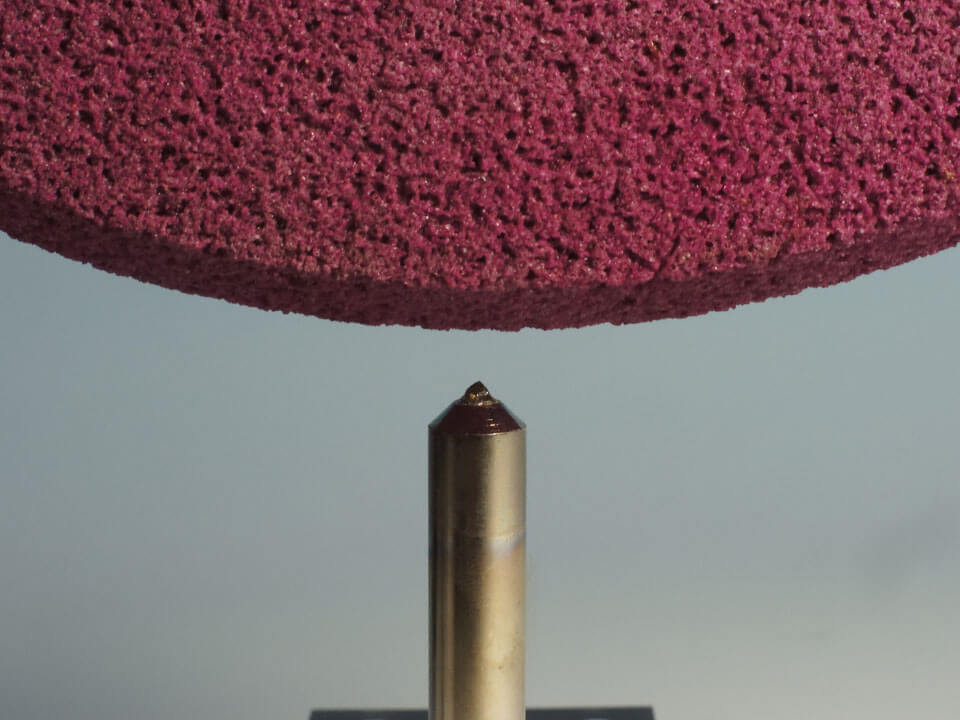

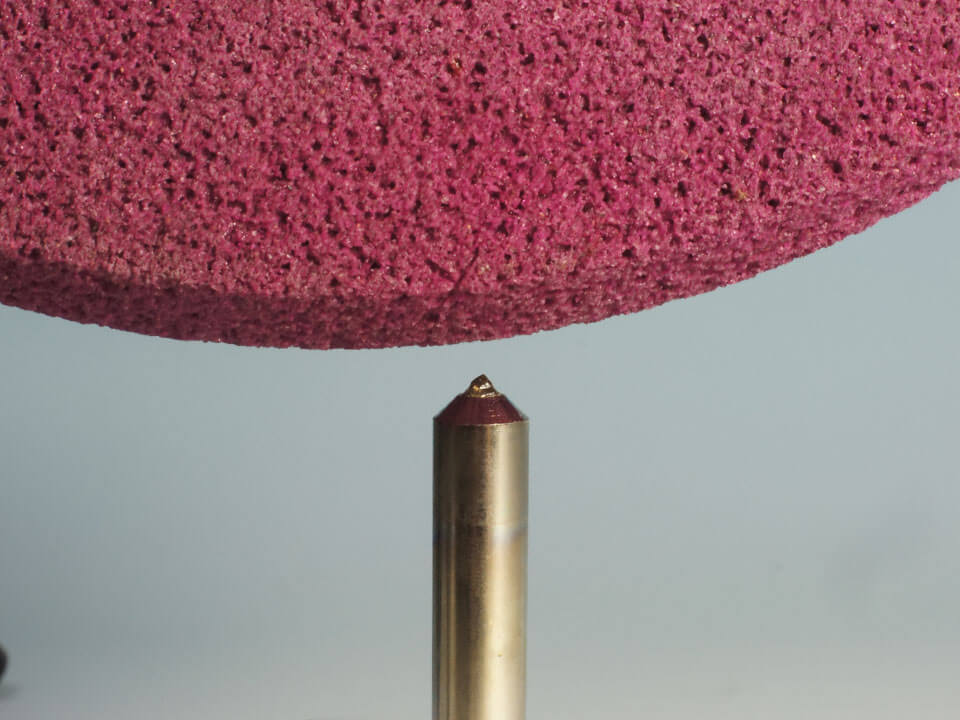

Our diamond dresser is mainly used for the dressing of Conventional wheel (silicon carbide and aluminum oxide wheels).
Very good quality of good shape with 2~3 working points. Size available 0.18 carat to 2.0 carats.

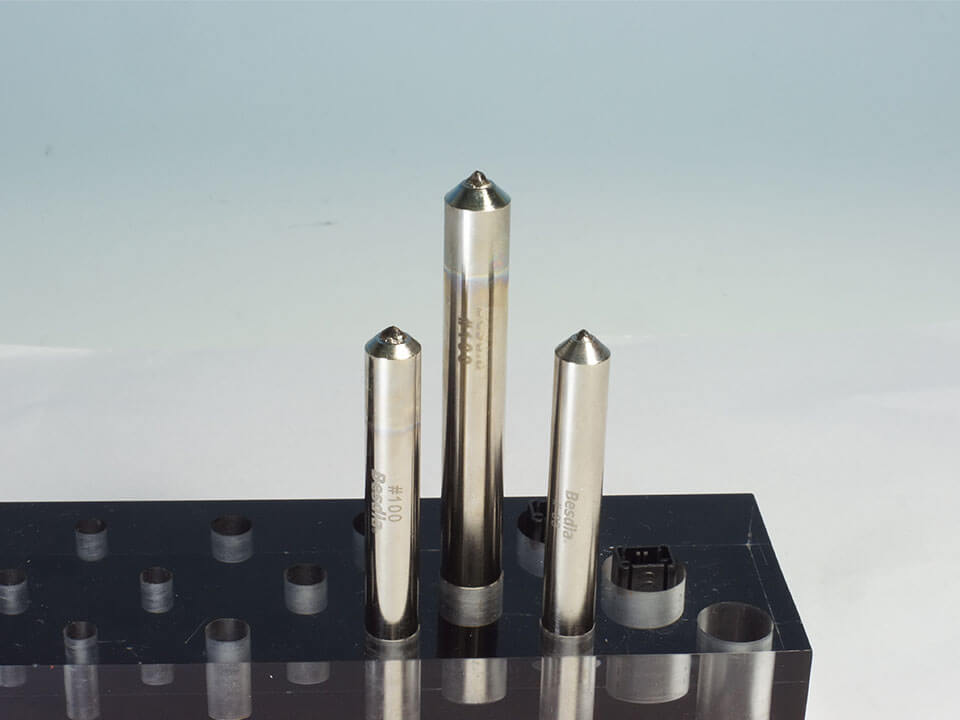

Standard Shank size (mm):
① 12D x 100L ② 10D x 80L ③ 12D x 50L ④ 10D x 50L
Installation and operation
| Dia. wt. code | Approx. wt.(cts.) | Order no. | Grinding wheels size(mm) |
|---|---|---|---|
| #5 #10 #15 |
0.18 0.20 0.25 |
DS005 DS010 DS015 |
Ø150 x 25 or smaller |
| #20 #25 #33 |
0.35 0.50 0.75 |
DS020 DS025 DS033 |
Ø150 ~ Ø300 x 25 |
| #50 | 1.0 | DS050 | Ø300 ~ Ø450 x 25 ~ 40 |
| #75 | 1.5 | DS075 | Ø450 ~ Ø600 x 50 ~ 100 |
| #100 | 2.0 | DS100 | Ø600 / or larger. |
- When ordering, please specify order no.& shank size or detail drawing.
