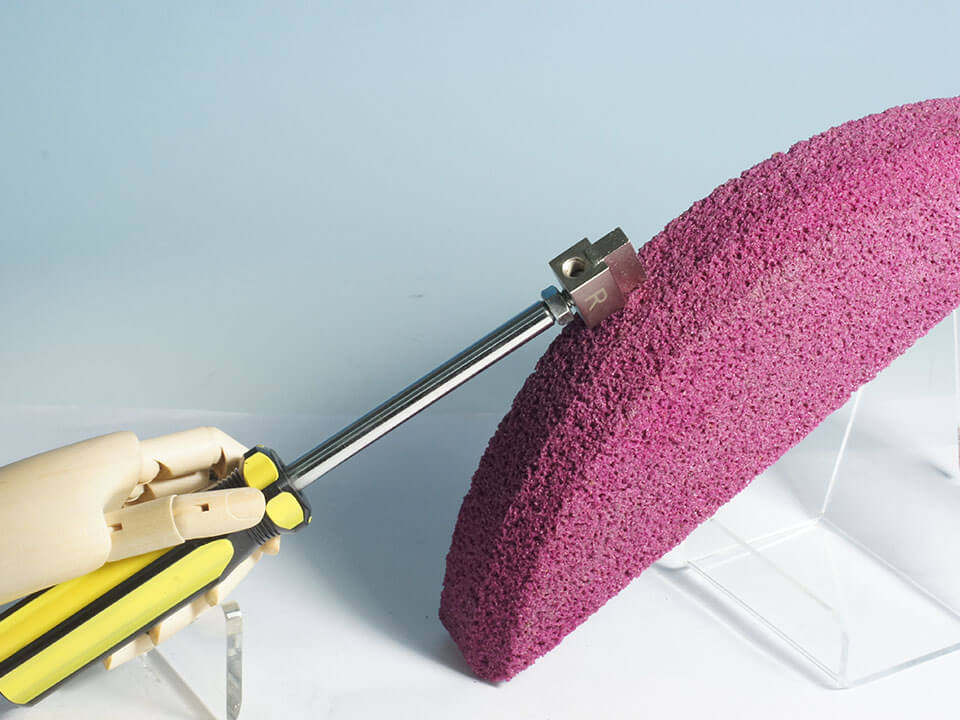

Impregnated Diamond Dressers
Impregnated Diamond Dressers
FEATURE
- The quality is steady and have longer tool life.
- It is a self-sharpening tools, no need to reset or reverse the tool during dressing.
- Dressing can be accomplished quickly, because of the large diamond section.
- Tool shank is suitable to handle and easy to dress.
- Quickly and safely dressing is possible, besides, it is economical.

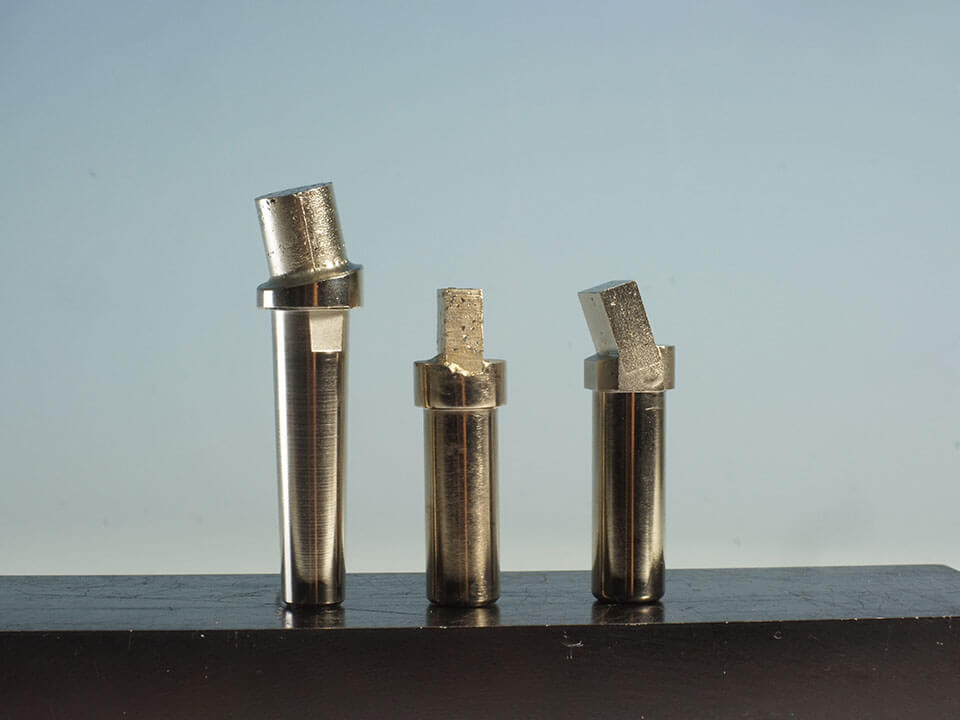

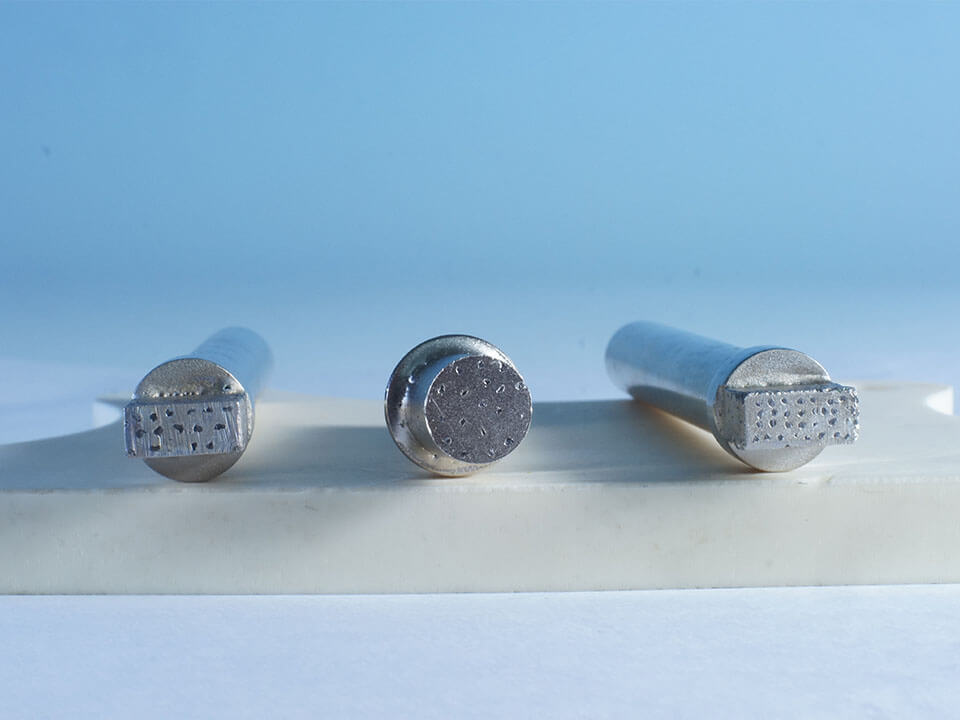

Impregnated Diamond Dressers (DI Series)
Unit : mm

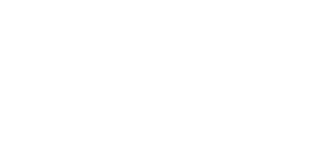

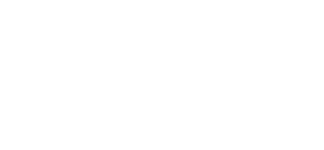

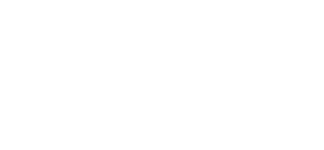

| Order no. | Diamond tips | Grit size | Type of shank | Size of shank | Applications |
|---|---|---|---|---|---|
| DI-2AFC | 2A | F |
|
Ø12 x 100L Ø12 x 50L Ø11 x 30L |
For centerless, cylindrical, surface grinding. Wheel size : Ø300 x 25 to Ø500 x 63 |
| DI-2AMC | 2A | M | |||
| DI-2ARC | 2A | R | |||
| DI-2AFD | 2A | F |
|
Ø12 x 50L Ø11 x 30L |
|
| DI-2AMD | 2A | M | |||
| DI-2ARD | 2A | R | |||
| DI-1CFG | 1C | F |
|
Ø12 x 50L Ø11 x 30L |
For general purpose grinding. Wheel size: Ø300 and smaller. |
| DI-1CMG | 1C | M | |||
| DI-1CRG | 1C | R |
- Grit size : F : Fine M : Medium R : Coarse

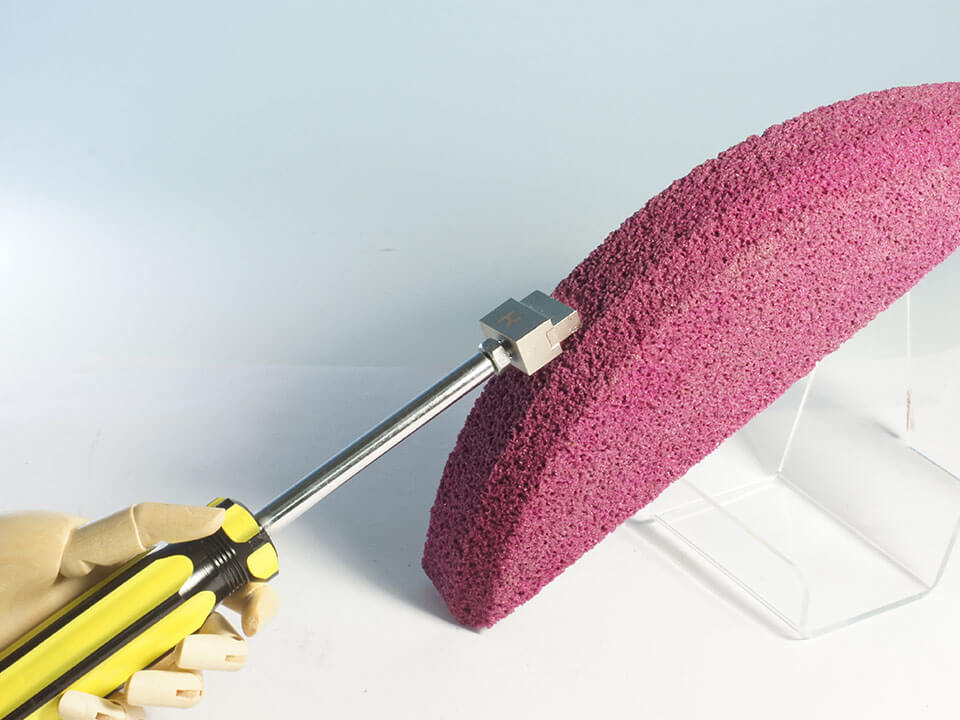

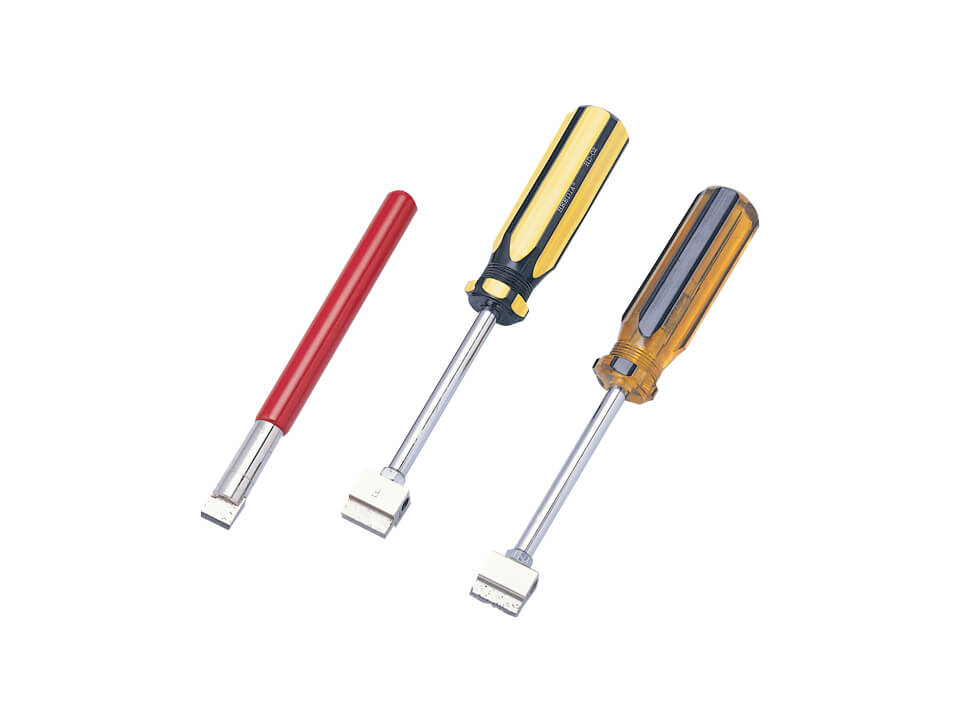

Hand Diamond Dressers

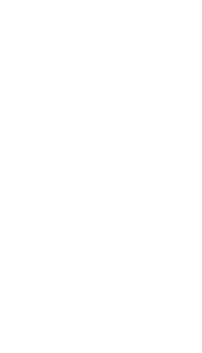

The dimensions of diamond tips
Unit : mm
| Form | Order no. | Diamond tips | Grit size |
|---|---|---|---|
|

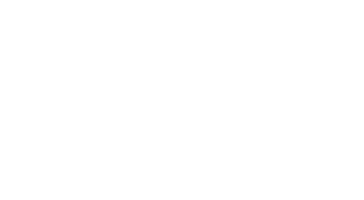

Type 01
Total length : 160mm |
HD-01R HD-01F |
2A |
R : Coarse F : Fine |
|
Type 02
|
HD-02R HD-02F |
1A |
R : Coarse F : Fine |
