EDM & DF Oil Polishing Stones
EDM & DF Oil Polishing Stones
FEATURE

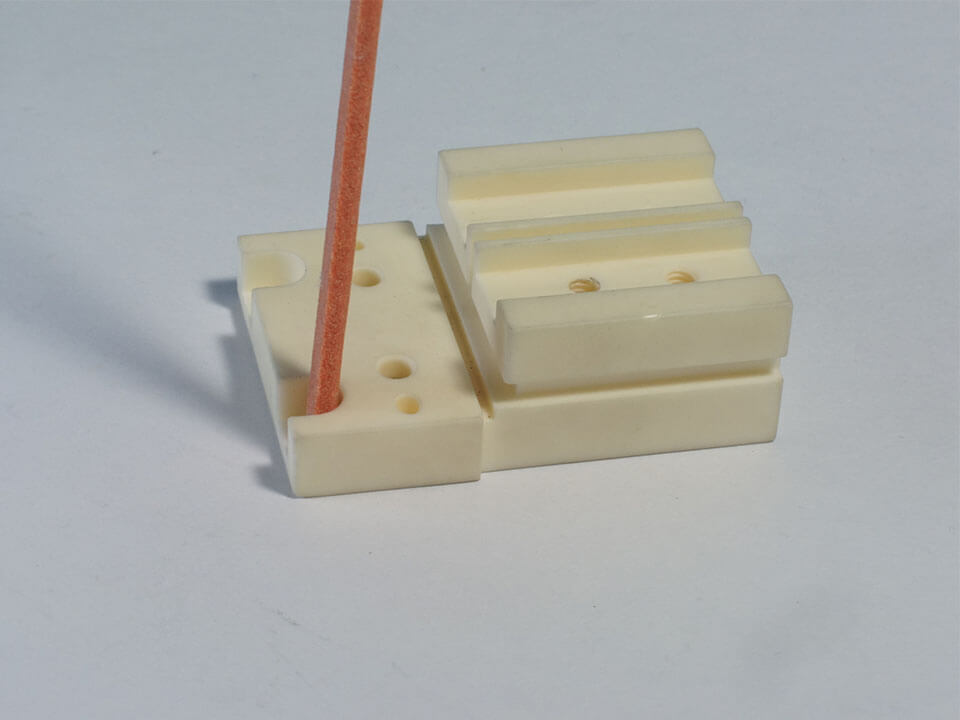

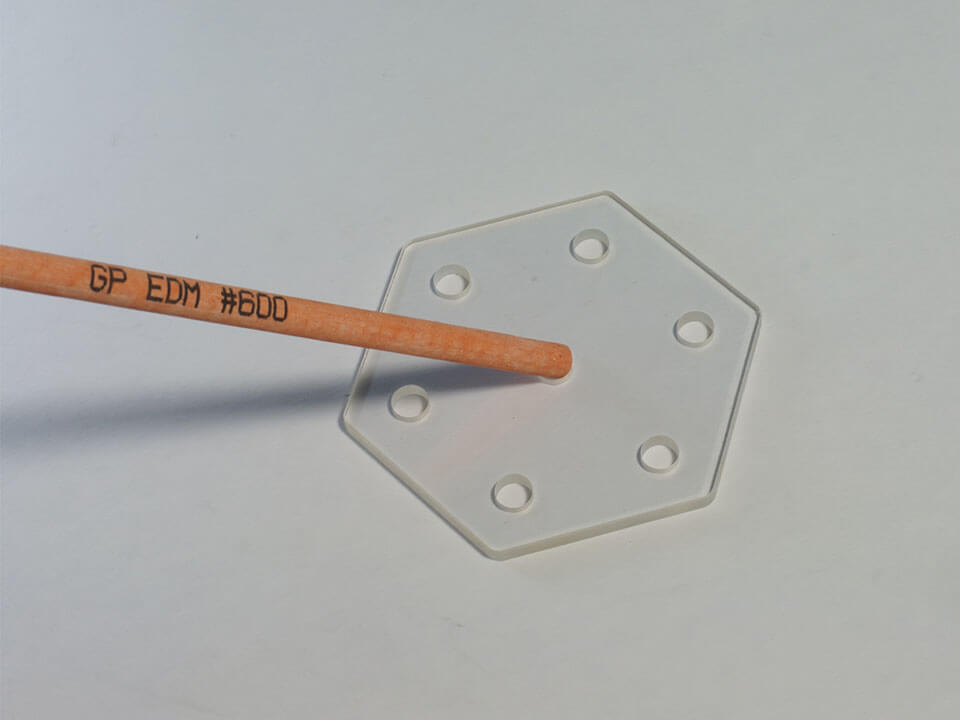

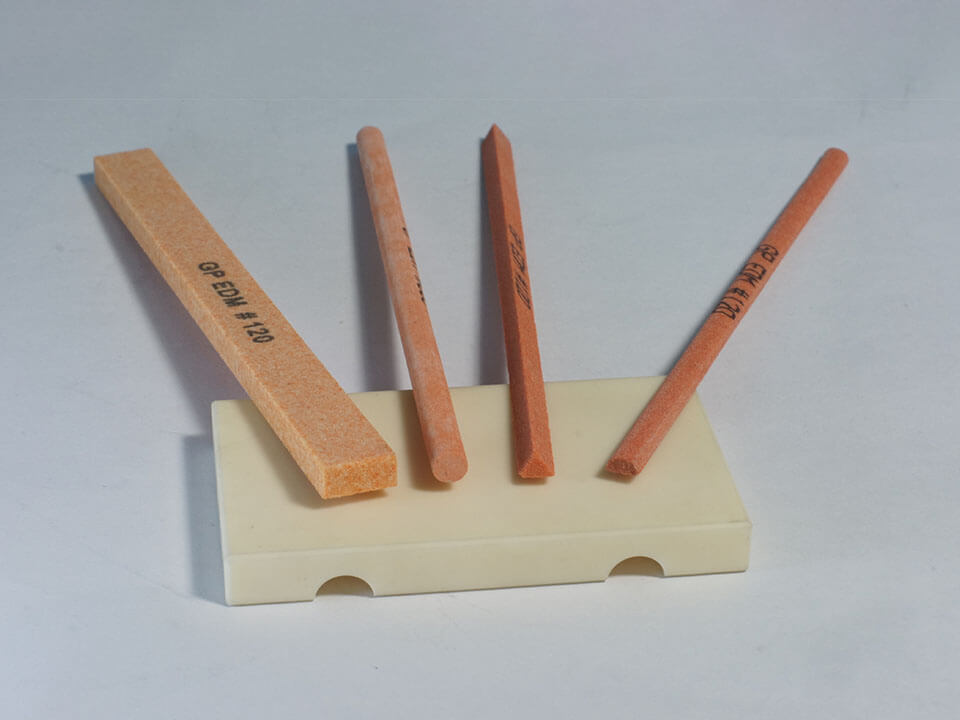

- EDM series industrial polishing stones are specially for removing the hard scale generated by the EDM process on all types of mold and die steels.

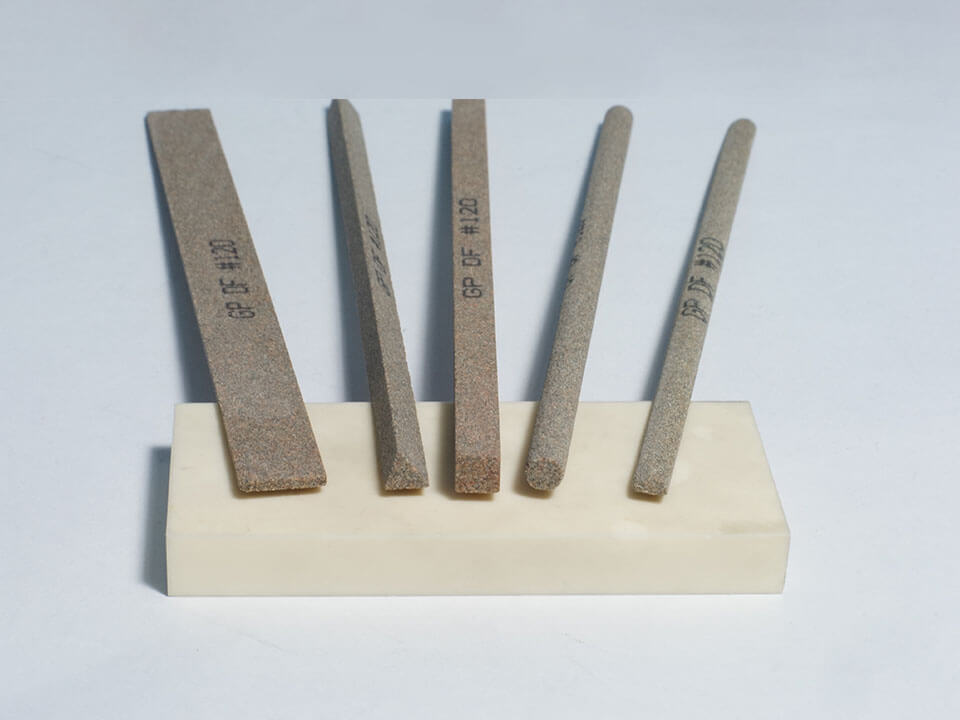

- DF series oil stones for polishing are suitable for removing the machined surface scratch and general lapping & polishing all mold and die steels.
Shape . Dimension . Grit Size
| Shape | Dimension | Grit Size |
|---|---|---|
Rectangle |
6 x 3 x 150mm (1/4" x 1/8" x 6") | #120，#180，#220，#320，#400，#600，#800，#1000，#1200 |
| 6 x 6 x 150mm (1/4" x 1/4" x 6") | ||
| 13 x 1.5 x 150mm (1/2" x 1/16" x 6") | ||
| 13 x 3 x 150mm (1/2" x 1/8" x 6") | ||
| 13 x 6 x 150mm (1/2" x 1/4" x 6") | ||
| 13 x 13 x 150mm (1/2" x 1/2" x 6") | ||
| 25 x 3 x 150mm (1" x 1/8" x 6") | ||
| 25 x 6 x 150mm (1" x 1/4" x 6") | ||
| 25 x 13 x 150mm (1" x 1/2" x 6") | ||
| 10 x 10 x 150mm (3/8" x 3/8" x 6") | ||

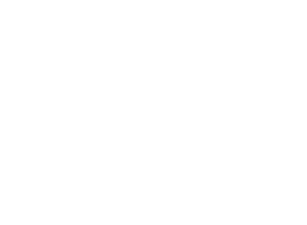

Round Type |
6mm Round x 150mm (1/4" Round x 6") | #120，#180，#220，#320，#400，#600，#800，#1000，#1200 |

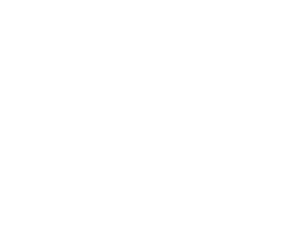

Half Round Type |
6mm Half Round x 150mm (1/4" Round x 6") | #120，#180，#220，#320，#400，#600，#800，#1000，#1200 |
Triangle Type |
6mm Triangle x 150mm (1/4" Triangle x 6") | #120，#180，#220，#320，#400，#600，#800，#1000，#1200 |
