Name: PCD & PCBN Turning Tools
Brand: Best Diamond Industrial Co., Ltd.

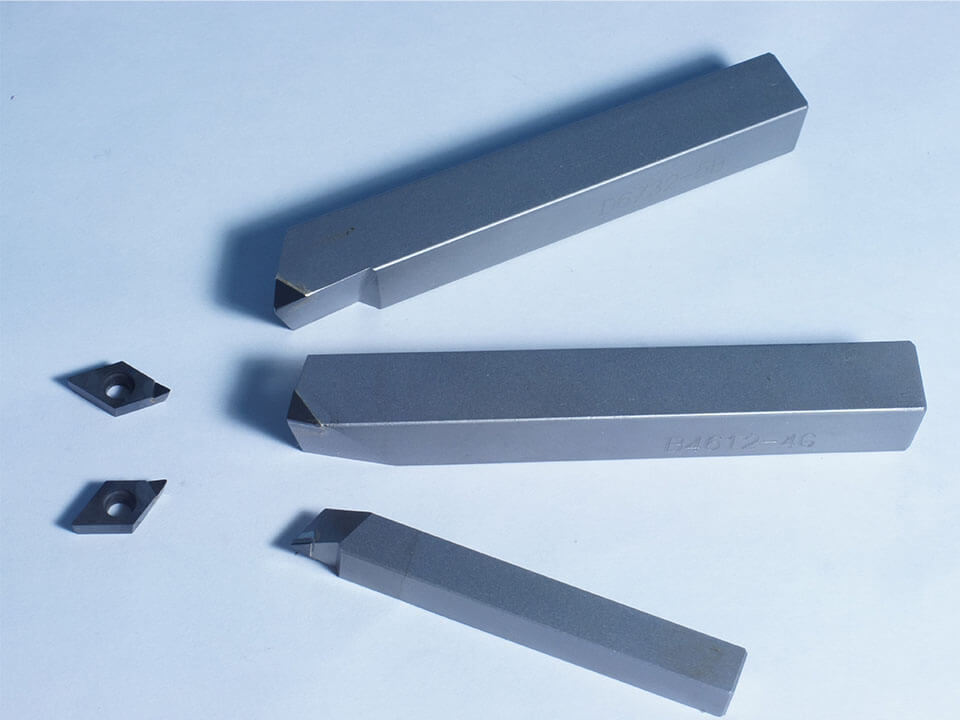

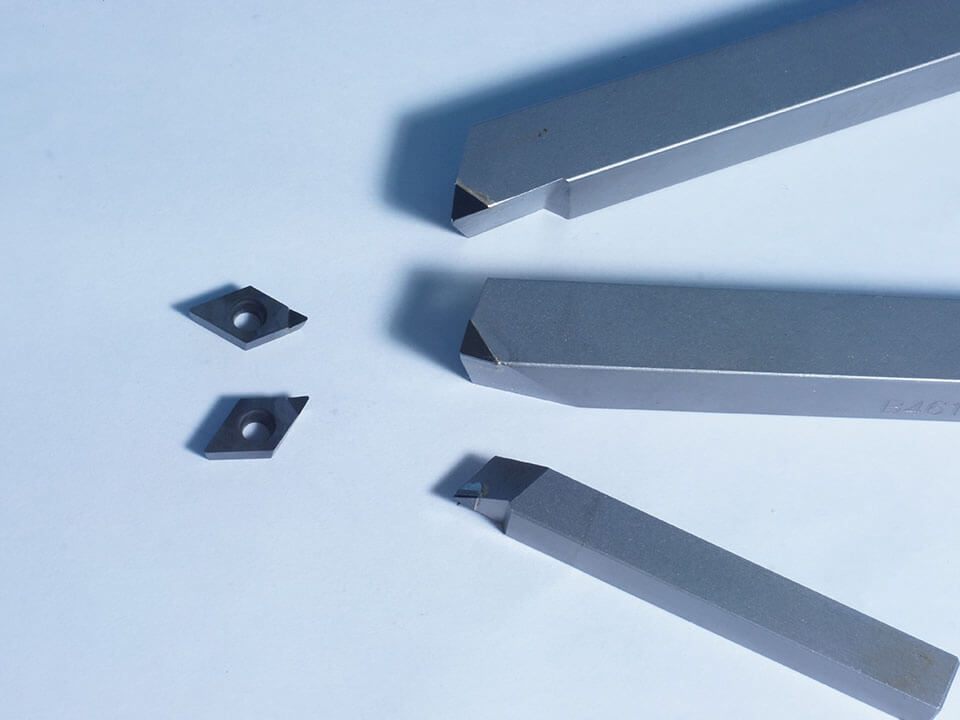

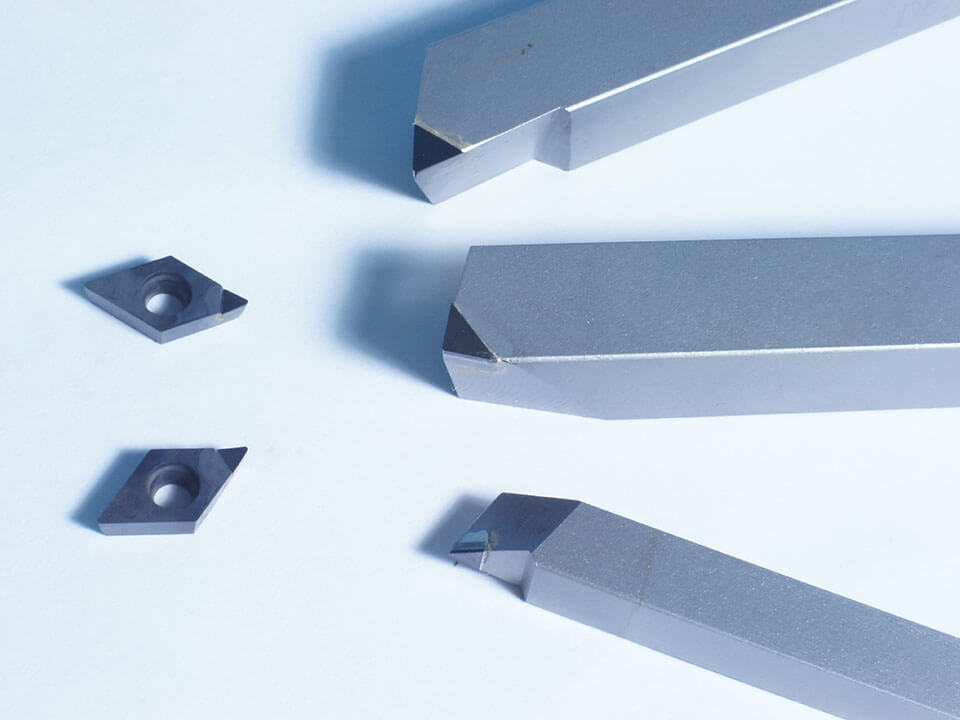

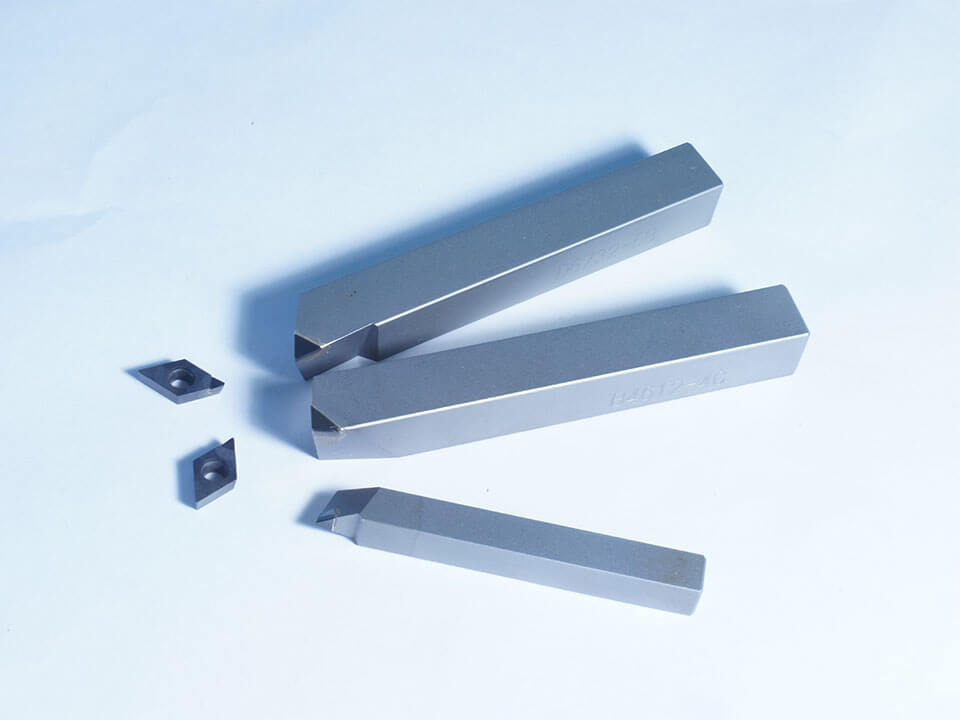

PCD & PCBN Turning Tools

FEATURE

PCD & PCBN have higher hardness & abrasion resistance than other cutting tools . The advantages of these features are：improving tool’s life, providing better control over part size and surface finishes, reducing tool cost per machined part and improving machine productivity.

Applications :

PCD : Aluminum alloys、copper alloys、manganese alloys
Sintered carbide & ceramics
Green or semi-sintered carbide & ceramics
High-silicon aluminum alloys
Reinforced plastic、hard rubber、carbon、graphite
PCBN : Hardened steels (HRC 45 ~ 68)
Tempering steels
Super alloys : Cobalt and nickel base super alloys
Cast iron : Chilled iron, Meehanite iron
Sintered ferrous alloys : SCM, SNCM

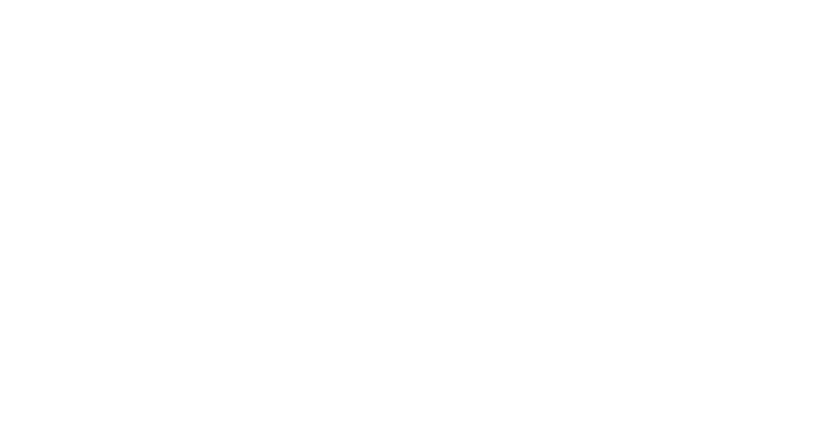

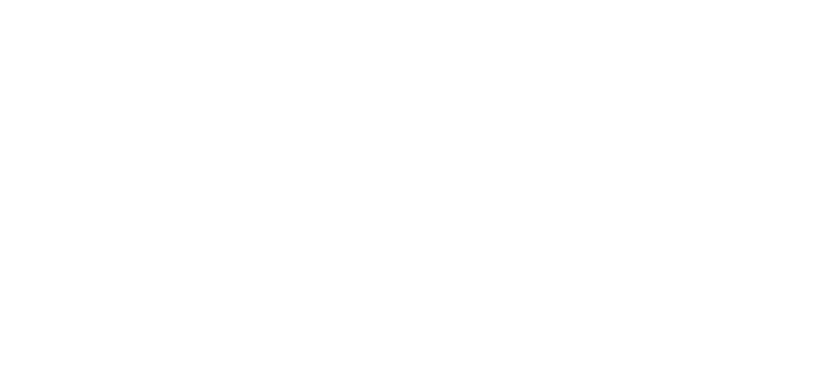

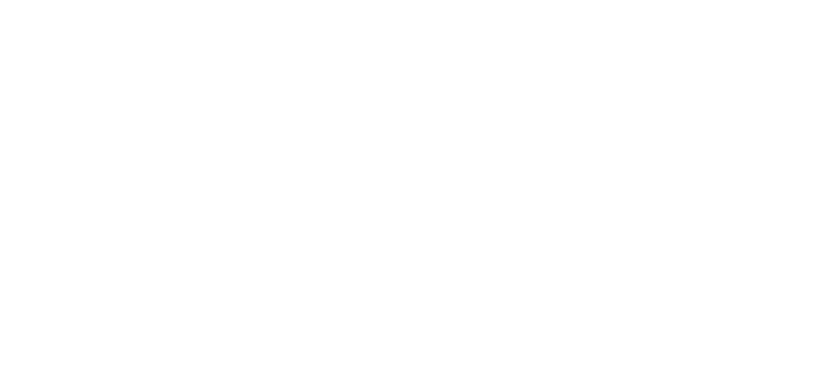

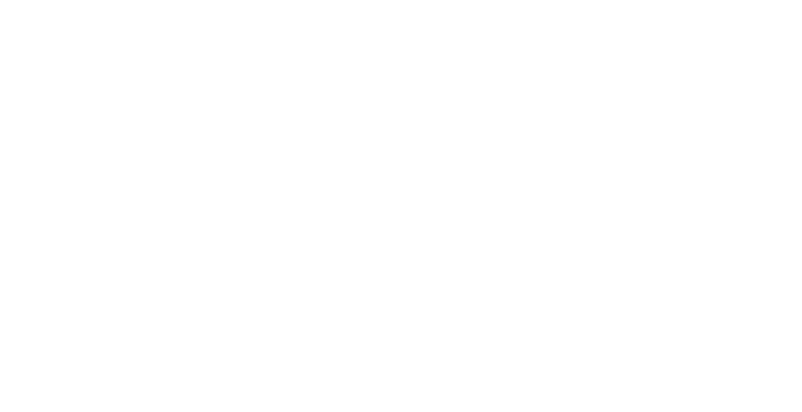

Unit : mm

	Order no.	Tip material	W	H	L	R	V°	S
31 type	B4612-4G	PCBN	16	16	120	0.4	0	0
31 type	B4613-4G	PCBN	19	19	140	0.4	0	0
33 type	D6732-5A	PCD	16	16	120	0.5	0	0
	D6733-5A	PCD	19	19	140	0.5	0	0
	B6630-4G	PCBN	10	10	80	0.4	0	0
	B6631-4G	PCBN	13	13	100	0.4	0	0
	B6632-4G	PCBN	16	16	120	0.4	0	0
	D6530-3F	PCD	10	10	80	0.3	10	0
	D6531-3F	PCD	13	13	100	0.3	10	0
	D6532-3F	PCD	16	16	120	0.3	10	0
34 type	D6540-3F	PCD	10	10	80	0.3	10	0
	D6541-3F	PCD	13	13	100	0.3	10	0
	D6542-3F	PCD	16	16	120	0.3	10	0
35 type	D6752-5A	PCD	16	16	120	0.5	0	0
	D6753-5A	PCD	19	19	140	0.5	0	0
	B6650-4G	PCBN	10	10	80	0.4	0	0
	B6651-4G	PCBN	13	13	100	0.4	0	0
	B6652-4G	PCBN	16	16	120	0.4	0	0
	D6550-3F	PCD	10	10	80	0.3	10	0
	D6551-3F	PCD	13	13	100	0.3	10	0
	D6552-3F	PCD	16	16	120	0.3	10	0
37 type	D6772-5A	PCD	16	16	120	0.5	0	2
	D6773-5A	PCD	19	19	140	0.5	0	2
	B6672-4G	PCBN	16	16	120	0.4	0	2
	B6673-4G	PCBN	19	19	140	0.4	0	2
	D6571-3F	PCD	13	13	100	0.3	10	2
	D6572-3F	PCD	16	16	120	0.3	10	2
