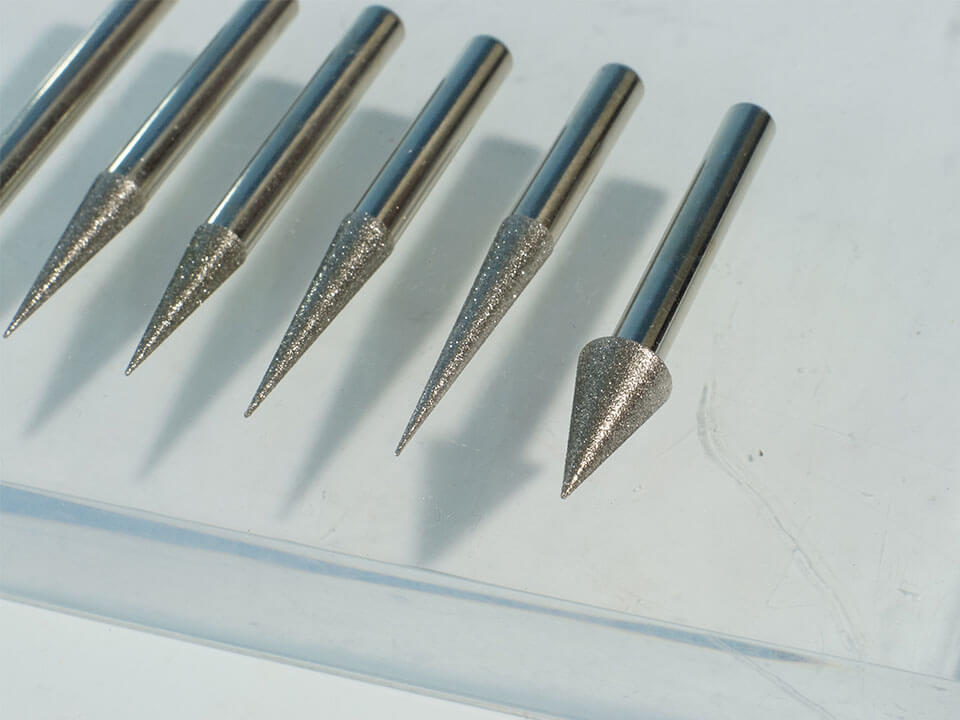

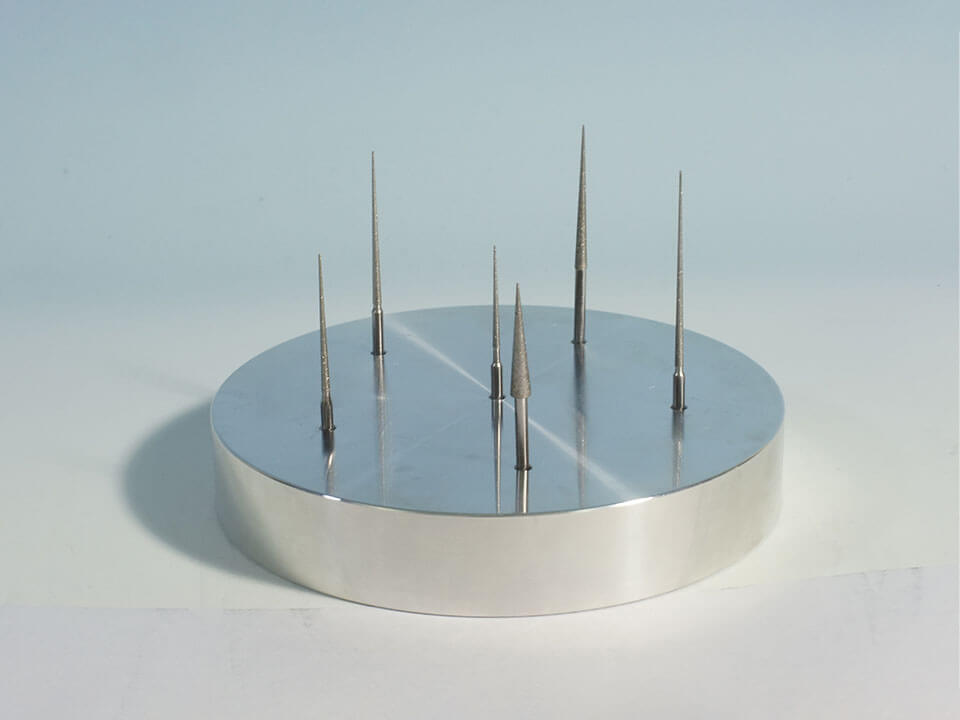

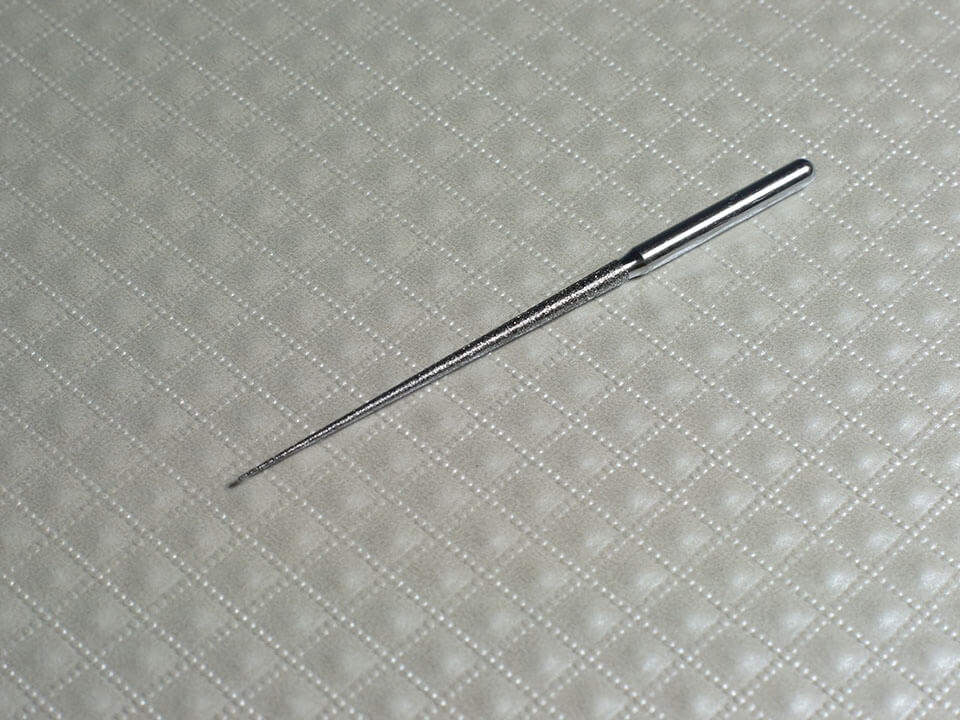

Diamond Taper Points
(ø3.0 & 6.0mm Shank)
Diamond Taper Points - ø3.0 & 6.0mm Shank
FEATURE
Multiple shape combinations , applicable for different processing needs, also flexible for air tools with various shank diameter. Due to diamond’s outstanding hardness, it has been used widely in diverse hard and brittle material, such as stones, gems, porcelain and quartz. All of our diamond and CBN mounted points can be customized according to your needs.
Unit : mm

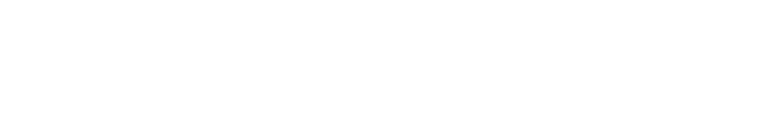

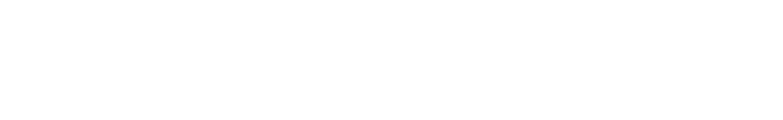

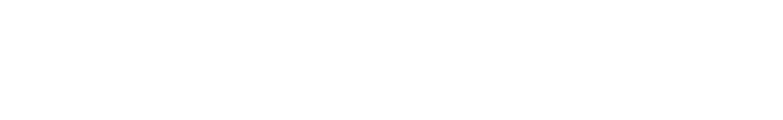

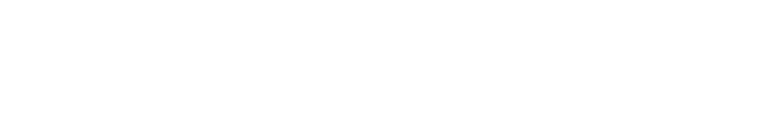

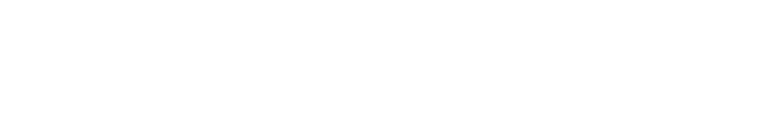

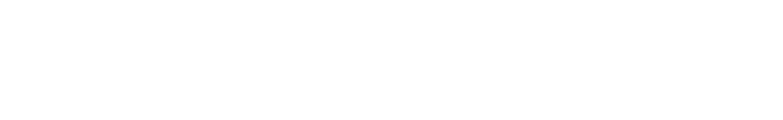

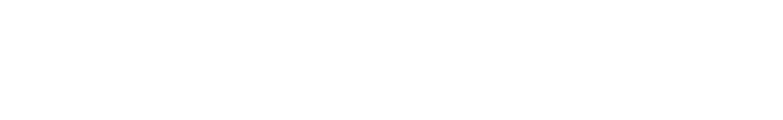

| ØD | T | θ° | ØB | L | Grit size | Order no. | |
|---|---|---|---|---|---|---|---|
| Ø1.8 | 25 | 3.1 | Ø3.0 | 50 | #150 | 18PL |
|
| Ø2.1 | 34 | 2.8 | Ø3.0 | 55 | #150 | 21PXL |
|
| Ø3.0 | 25 | 6.4 | Ø3.0 | 60 | #150 | 30PL |
|
| Ø4.8 | 26 | 9.6 | Ø3.0 | 55 | #150 | 48PL |
|
| Ø1.5 | 26 | 2.3 | Ø3.0 | 60 | #150 | 15PL |
|
| Ø2.0 | 48 | 1.9 | Ø3.0 | 70 | #150 | 20PXL |
|
| Ø2.3 | 40 | 2.7 | Ø3.0 | 65 | #150 | 23PXL |
|
| Ø2.5 | 45 | 2.6 | Ø3.0 | 70 | #150 | 25PXL |
|
| Ø3.0 | 38 | 4.2 | Ø3.0 | 70 | #150 | 30PXL |
|
| Ø6.0 | 33 | 10 | Ø6.0 | 60 | #120 | 60P10 |
|
| Ø6.0 | 28 | 12 | Ø6.0 | 60 | #120 | 60P12 |
|
| Ø6.0 | 23 | 14 | Ø6.0 | 60 | #120 | 60P14 |
|
| Ø6.0 | 21 | 16 | Ø6.0 | 60 | #120 | 60P16 |
|
| Ø6.0 | 17 | 20 | Ø6.0 | 60 | #120 | 60P20 |
|
| Ø10.0 | 19 | 30 | Ø6.0 | 60 | #120 | 100P30 |
|
