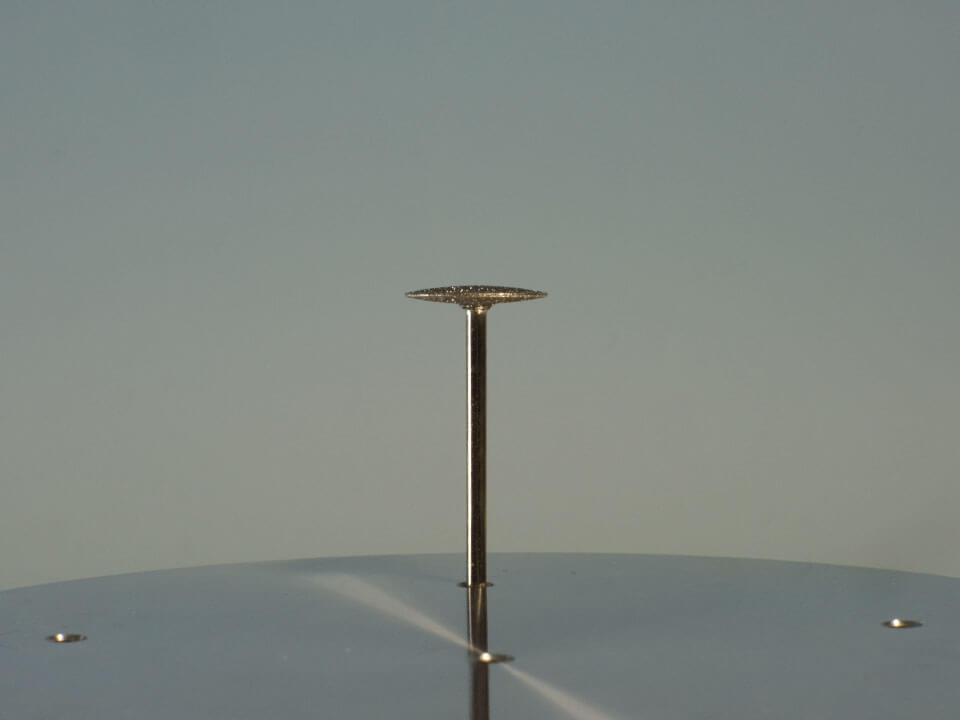

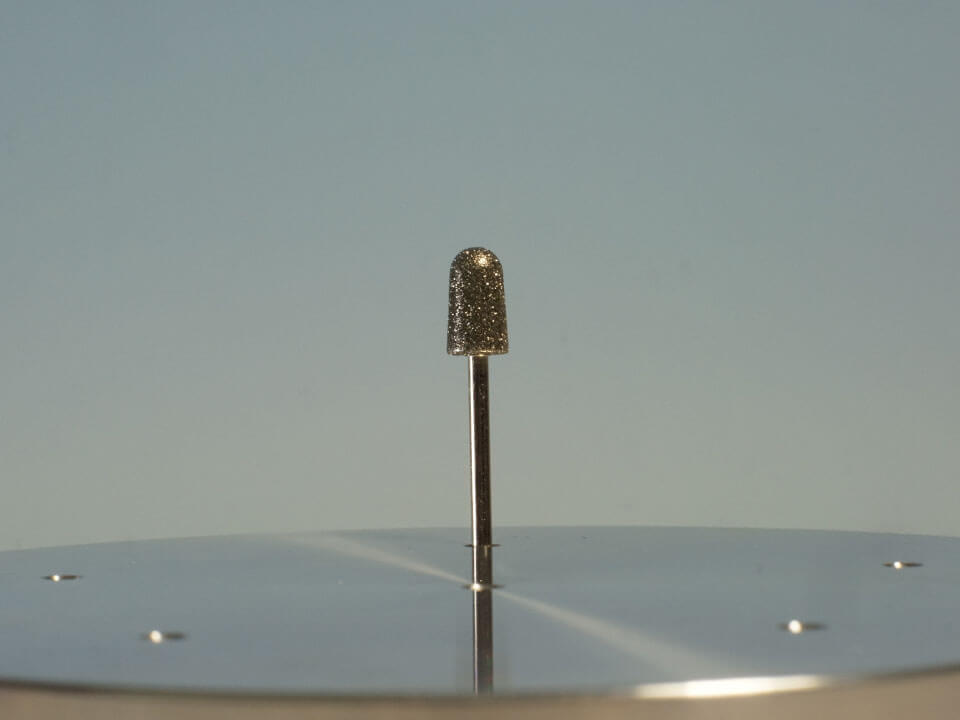

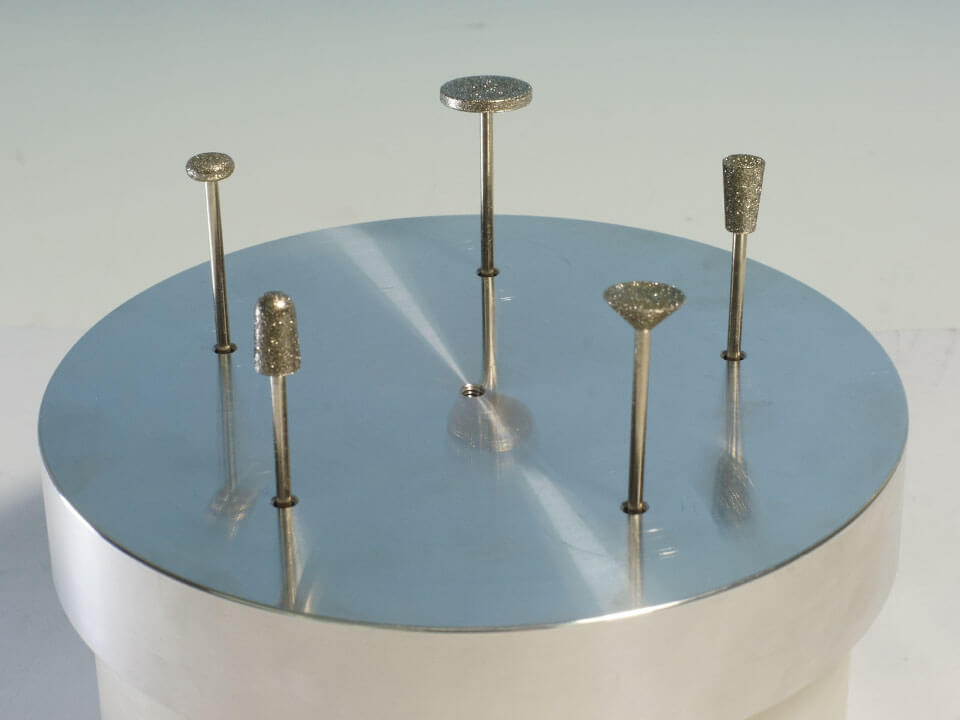

BH Diamond Mounted Points
(ø2.34 mm Shank)
BH Series - ø2.34 mm Shank
FEATURE
- Multiple shape combinations, applicable for different processing needs. Due to diamond’s outstanding hardness, it has been used widely in diverse hard and brittle material, such as stones, gems, porcelain and quartz. All of our diamond and CBN mounted points can be customized according to your needs.
- Shank diameter：ø2.34mm, Total length：45mm.
Unit : mm
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Order no. | BH160E | BH60Q | BH60R | BH30A | BH25K | BH25J | BH25F | BH30V | BH15P | BH20B |
| ØD | 16 | 6.0 | 6.0 | 3.0 | 2.5 | 2.5 | 2.5 | 3.0 | 1.5 | 2.0 |
| T | 0.5 | 10 | 14 | 15 | 10 | 10 | 6 | (45°) | 10 | - |
| Grit size | #200 | #100 | #100 | #120 | #150 | #150 | #120 | #200 | #200 | #150 |
- BHS-10 : 10 pcs, set, contains one each of all above points.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Order no. | BH11A | BH14A | BH19A | BH24A | BH27A | BH32A | BH39A | BH49A | BH14R | BH24R |
| ØD | 1.1 | 1.4 | 1.9 | 2.4 | 2.7 | 3.2 | 3.9 | 4.9 | 1.4 | 2.4 |
| T | 7 | 7 | 7 | 7 | 7 | 7 | 10 | 10 | 10 | 13 |
| Grit size | #150 | #150 | #120 | #120 | #120 | #150 | #120 | #120 | #120 | #120 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Order no. | BH20B | BH24B | BH30B | BH35B | BH39B | BH14C | BH19C | BH29C | BH39C | BH49C |
| ØD | 2.0 | 2.4 | 3.0 | 3.5 | 3.9 | 1.4 | 1.9 | 2.9 | 3.9 | 4.9 |
| T | - | - | - | - | - | 7 | 7 | 7 | 10 | 10 |
| Grit size | #150 | #120 | #120 | #120 | #120 | #150 | #120 | #120 | #120 | #120 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Order no. | BH18P | BH24P | BH29P | BH42P | BH14T | BH19T | BG26T | BH30S | BH30Y | BH17J |
| ØD | 1.8 | 2.4 | 2.9 | 4.2 | 1.4 | 1.9 | 2.6 | 3.0 | 3.0 | 1.7 |
| T | 10 | 12 | 14 | 6 | 7 | 7 | 7 | 6 | - | 10 |
| Grit size | #150 | #150 | #150 | #150 | #120 | #120 | #120 | #120 | #150 | #150 |
- BHS-30 : 30 pcs. set, contains one each of all above points.
- BHS-20 : 20 pcs. set, contains one each of points which denoted by＊.
Unit : mm
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Order No. | D1 | D2 | D3 | D4 | A11 | A12 | A13 | A21 | A30 | 7A | 8A | C3 | C13 | C23 | TR | 1R |
| ØD | 1 | 2 | 3 | 4 | 1 | 1.5 | 1.5 | 2.5 | 3 | 7 | 8 | 0.9 | 1.5 | 2 | 1.5 | 1.5 |
| T | - | - | - | - | 5 | 5 | 7 | 7 | 7 | 6 | 10 | 4 | 10 | 10 | 8 | 10 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Order No. | KS | 1LR | 2R | 2LR | 3R | 5R | 6R | 7R | 8R | K6 | K10 | KA | 12BA | 14BA | 16BA | 19BA |
| ØD | 3.5 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 7 | 8 | 2 | 2.5 | 7 | 4 | 6 | 10 | 12 |
| T | 6 | 10 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 5 | 7 | 12 | - | - | - | - |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Order No. | T11 | T12 | T13 | T30 | 1A | 2A | 2LA | 3A | 5A | 6A | RZ | 2LB | A14 | Kr5 | Kr8 | Kr9 |
| ØD | 1 | 1.5 | 2 | 3 | 2 | 2.5 | 2.5 | 3 | 4 | 5 | 4 | 2.5 | 2.5 | 6 | 8 | 8 |
| T | 4 | 4 | 4 | 4 | 8 | 12 | 10 | 10 | 10 | 10 | 6 | 12 | 7 | 1.5 | 2 | 3 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Order No. | A20 | A31 | 10B | 12B | 13B | 14B | 16B | 16BB | 16BC | 13nk | 13mB | 16mC | 16mB |
| ØD | 2.5 | 3 | 2.7 | 4 | 5 | 6 | 10 | 10 | 10 | 5 | 13 | 16 | 16 |
| T | 7 | 7 | - | - | - | - | - | - | - | - | 2.5 | 2.5 | 3.5 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Order No. | RT | 10X | 17X | 18X | 19X | 23X | 10BN | 12BN | 13BN | 10mA | 13mA | 16mA | K25 | K30 |
| ØD | 5 | 1.8 | 4 | 6 | 10 | 16 | 2.5 | 4 | 5 | 10 | 13 | 16 | 4 | 5 |
| T | 7 | 0.5 | 0.8 | 1 | 1.6 | 2 | - | - | - | 2.5 | 3.5 | 3.5 | 0.4 | 0.6 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|
| Order No. | K35 | K45 | K50 | K55 | K60 | 20mA | 88D | 88C | 88A |
| ØD | 6 | 10 | 10 | 12 | 12 | 20 | 22 | 22 | 22 |
| T | 0.5 | 0.5 | 1 | 0.6 | 1 | 3.5 | 0.45 | 0.35 | 0.45 |
